Industrial piping systems operate under increasingly demanding conditions, including high pressure, elevated temperatures, corrosive media, and frequent operating cycles. Whether in oil and gas, chemical processing, power generation, water treatment, marine engineering, or petrochemical facilities, isolation valves must provide reliable shutoff performance while maintaining long-term operational stability.

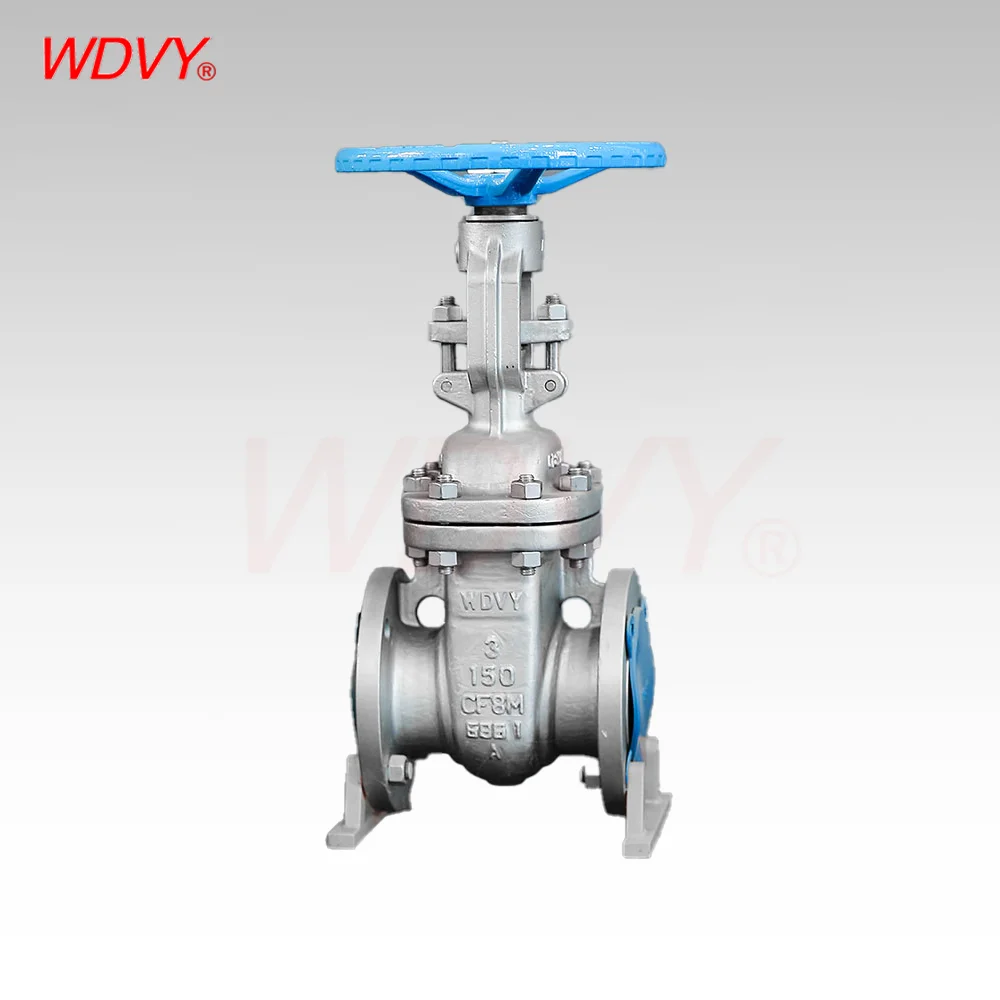

A Stainless Steel Flexible Wedge Gate Valve is designed to meet these requirements by combining the corrosion resistance of stainless steel with the adaptive sealing capability of a flexible wedge gate. Compared with rigid wedge gate valves, the flexible wedge design compensates for minor seat deformation caused by temperature changes or mechanical stress, resulting in improved sealing reliability and lower operating torque.

However, selecting a suitable gate valve requires more than choosing the correct pressure class or nominal diameter. Material selection, sealing design, manufacturing accuracy, valve standards, and testing procedures all influence long-term performance and maintenance costs. Understanding these factors helps operators build safer and more reliable pipeline systems.

What Is a Stainless Steel Flexible Wedge Gate Valve?

A Stainless Steel Flexible Wedge Gate Valve is a linear-motion isolation valve designed to fully open or completely close the flow path within a pipeline. Unlike throttling valves, gate valves are intended for on/off service with minimal pressure loss when fully open.

The valve consists of several major components:

• Valve body

• Bonnet

• Flexible wedge gate

• Stem

• Valve seat

• Packing assembly

• Handwheel or actuator

The defining feature is the flexible wedge gate. Instead of using a completely rigid gate, the wedge contains a machined relief groove that allows slight elastic deformation. This flexibility enables the gate to maintain uniform contact with both seating surfaces even when thermal expansion or machining tolerances create minor alignment variations.

The result is improved sealing performance without introducing excessive stress on the valve body or seats.

Why Stainless Steel Is Preferred for Industrial Gate Valves

Material selection is one of the most important considerations in valve design.

Stainless steel offers excellent corrosion resistance, mechanical strength, and durability, making it suitable for demanding industrial environments where carbon steel valves may experience rapid deterioration.

Typical stainless steel materials include:

• ASTM A351 CF8

• ASTM A351 CF8M

• ASTM A216 WCB with stainless trim for specific applications

• Duplex stainless steel for aggressive service conditions

The appropriate material depends on the process medium, operating temperature, pressure, and environmental conditions.

Corrosion Resistance

Many industrial fluids contain chlorides, acids, alkalis, or other corrosive substances.

Stainless steel forms a stable chromium oxide layer on its surface, providing long-term protection against corrosion while reducing maintenance requirements.

This characteristic makes stainless steel gate valves suitable for:

• Chemical processing

• Offshore platforms

• Desalination systems

• Marine applications

• Pharmaceutical production

High Temperature Performance

Industrial valves often operate in systems where temperatures exceed several hundred degrees Celsius.

Stainless steel maintains its mechanical properties under elevated temperatures while resisting oxidation better than many conventional materials.

This ensures stable sealing performance during long-term operation.

Flexible Wedge Design Improves Sealing Reliability

Traditional solid wedge gate valves may experience sealing problems when exposed to temperature fluctuations.

As pipeline temperature changes, thermal expansion can slightly distort the valve body or seating surfaces. A rigid gate cannot easily compensate for these dimensional changes, potentially increasing leakage risk or operating torque.

A flexible wedge addresses this issue through controlled elastic deformation.

Key advantages include:

• Better seat contact

• Improved bidirectional sealing

• Lower closing torque

• Reduced seat wear

• Enhanced performance during thermal cycling

For steam systems, high-temperature process lines, and power generation facilities, this flexibility significantly improves operational reliability.

Low Pressure Drop Supports Efficient Pipeline Operation

Gate valves are selected primarily because they provide minimal flow resistance when fully open.

Once the flexible wedge moves completely out of the flow path, the internal passage closely matches the pipeline diameter.

This provides several operational benefits:

• Reduced pressure loss

• Lower pumping energy

• Higher system efficiency

• Stable process flow

Compared with globe valves, which intentionally restrict flow for throttling applications, gate valves are better suited for isolation duties where unrestricted flow is required.

Pressure Class and Design Standards

Industrial Stainless Steel Flexible Wedge Gate Valves are manufactured according to internationally recognized standards that ensure safety, interchangeability, and performance consistency.

Common pressure ratings include:

• Class 150

• Class 300

• Class 600

• Class 900

• Class 1500

The selected pressure class should always match the maximum design pressure and operating temperature of the pipeline.

Typical design standards include:

• API 600

• API 6D

• ASME B16.34

• ASME B16.10

• ASME B16.5

• BS 1414

Compliance with these standards ensures dimensional compatibility, structural integrity, and safe operation throughout the valve's service life.

Precision Manufacturing Determines Valve Performance

Even the highest-grade stainless steel cannot compensate for poor manufacturing accuracy.

Critical machining processes include:

• Body machining

• Seat machining

• Gate grinding

• Stem finishing

• Sealing surface lapping

Precision machining ensures accurate alignment between the wedge and valve seats, reducing leakage while minimizing operating torque.

Modern CNC machining also improves dimensional consistency across production batches, allowing reliable interchangeability of components.

Sealing Performance Depends on Seat Accuracy

The sealing surfaces of a Stainless Steel Flexible Wedge Gate Valve are among its most critical components.

Poorly machined seating surfaces may result in:

• Internal leakage

• Increased operating torque

• Accelerated wear

• Reduced service life

Professional valve manufacturers perform precision grinding and lapping to achieve smooth sealing surfaces capable of maintaining reliable shutoff under demanding operating conditions.

Hydrostatic pressure testing and seat leakage testing further verify sealing performance before shipment.

Industrial Applications of Stainless Steel Flexible Wedge Gate Valves

Because of their durability and corrosion resistance, these valves are widely used in numerous industries.

Oil and Gas

Pipeline isolation, storage facilities, and refinery systems require valves capable of operating under high pressure while resisting corrosive process media.

Flexible wedge gate valves provide reliable shutoff for upstream, midstream, and downstream applications.

Chemical Processing

Chemical plants transport aggressive fluids that require corrosion-resistant valve materials.

Stainless steel construction provides long service life while minimizing maintenance requirements.

Power Generation

Steam systems operate under elevated temperatures and pressure fluctuations.

The flexible wedge design helps maintain sealing performance despite repeated thermal expansion cycles.

Water Treatment

Municipal and industrial water systems require durable valves with excellent corrosion resistance and low maintenance requirements.

Stainless steel gate valves offer reliable long-term operation in potable water and industrial water treatment facilities.

Marine Engineering

Saltwater environments accelerate corrosion of conventional materials.

Stainless steel significantly improves valve durability in offshore platforms, shipbuilding, and coastal infrastructure.

Manufacturing Capability Is Essential for Long-Term Reliability

Reliable valve performance depends not only on product design but also on manufacturing capability.

Zhejiang Wandong Valve Co., Ltd. is a vertically integrated industrial valve manufacturer with specialized production workshops covering:

• Ball valves

• Large-diameter gate valves

• Special stainless steel valves

• Multi-function valve production, including gate valves, globe valves, check valves, and Y-strainers

This integrated manufacturing structure allows better process control, consistent machining quality, and efficient production management. Specialized workshops also improve manufacturing expertise for different valve categories, supporting customers with a broad range of industrial flow control solutions.

How to Choose the Right Stainless Steel Flexible Wedge Gate Valve Supplier

Selecting a valve supplier involves evaluating both technical capability and manufacturing quality.

Important considerations include:

• Compliance with international standards

• Material traceability

• CNC machining capability

• Pressure testing procedures

• Quality management systems

• Engineering support

• Production capacity

Manufacturers with vertically integrated production and dedicated valve workshops are generally better positioned to maintain consistent quality while supporting customized industrial requirements.

Conclusion: Stainless Steel Flexible Wedge Gate Valves Deliver Reliable Isolation for Demanding Industrial Systems

A Stainless Steel Flexible Wedge Gate Valve combines corrosion-resistant materials with an adaptive sealing design to provide dependable shutoff performance across demanding industrial applications. Compared with conventional rigid wedge designs, the flexible wedge improves sealing reliability, reduces operating torque, and performs more effectively under thermal cycling conditions.

When combined with precision machining, international manufacturing standards, and comprehensive quality testing, these valves offer long service life, low maintenance requirements, and stable performance in industries ranging from oil and gas to chemical processing, power generation, marine engineering, and water treatment.

For companies seeking reliable pipeline isolation solutions, partnering with an experienced manufacturer that offers specialized stainless steel valve production and strong engineering capabilities is a practical investment in long-term operational safety and efficiency.
