Understanding the Twist-Resistant FFC Connector Advantage

Modern security infrastructure depends on components that can withstand constant, repetitive motion without failure. Among the connectivity solutions engineered for this purpose, the twist-resistant FFC (Flat Flexible Cable) connector stands out as a critical enabler for moving-part security equipment. TXGA Connector, a brand of TXGA LLC, has developed its FPC/FFC Connector line specifically to address the dynamic bending demands found in flexible printed circuit and flat flexible cable connections used across compact and mobile electronic designs.

Why Security Equipment Demands Dynamic Bending Durability

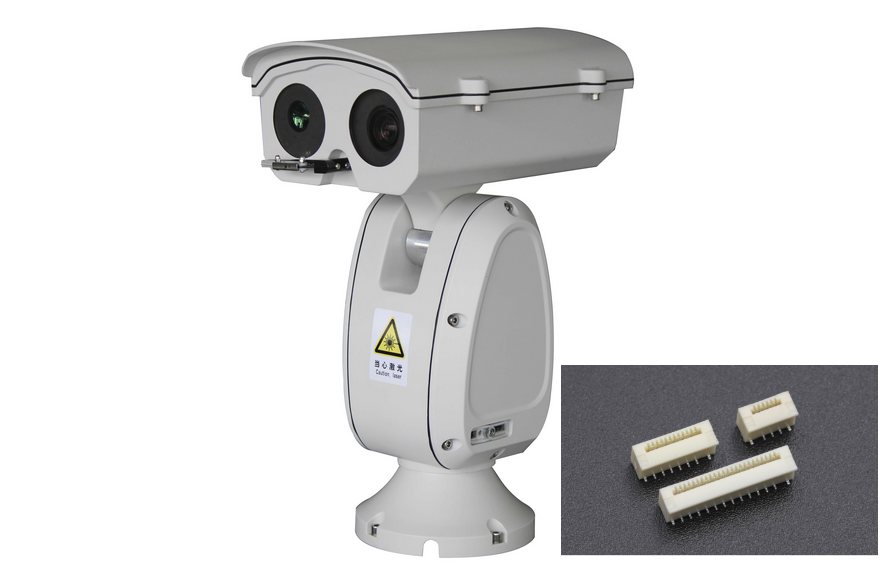

Security cameras that rotate, tilt, or "shake their heads" to cover wide-angle surveillance zones place continuous mechanical stress on the internal wiring that links the motherboard to the moving lens or sensor assembly. This target scenario pain point—moving components requiring repeated dynamic bending without failure—is exactly the challenge TXGA’s FPC/FFC Connector was designed to solve. Every rotation, pan, or tilt cycle flexes the flat cable, and over time, cables without reinforced structures can crack, fray, or lose conductivity. For urban security systems that operate around the clock, including electronic eye monitoring, Skynet monitoring, illegal stop capture, and traffic monitoring, this kind of mechanical fatigue is not a hypothetical risk; it is a daily operational reality.

Engineering Behind the 0.225 mm Reinforcing Plate

The differentiated value of the TXGA FFC flat cable lies in its 0.225 mm thick reinforcing plate structure. This reinforcing plate increases connection strength while keeping the cable safe and resistant to twists and turns. As a result, the connector supports more than 100,000 dynamic bends between the motherboard and mobile components. This is not a marginal improvement—it represents a fundamental design choice that allows the cable to flex repeatedly at the point where mechanical stress concentrates most, without degrading electrical performance or physical integrity.

The reinforcing plate structure also reflects a broader engineering philosophy at TXGA: rather than treating flexibility and strength as opposing properties, the design integrates both into a single component. The FFC connector remains thin and adaptable enough to fit into compact camera housings while still delivering the mechanical resilience required for continuous, high-cycle motion.

Proven Performance in Real-World Security Deployments

The practical value of this engineering becomes clear when examining how TXGA’s FFC connector performs in actual security monitoring deployments. Security cameras used in electronic eye systems, Skynet monitoring networks, illegal stop capture units, and traffic monitoring installations require reliable video monitoring front-end connections that can endure years of unattended operation. In these environments, the TXGA FFC flat cable, with its 0.225 mm reinforcing plate structure, has demonstrated the capacity for more than 100,000 dynamic bends between the motherboard and mobile components.

This level of durability directly increases connection strength and enables multi-view monitoring for shaking-head cameras—meaning the camera can continue to pan and rotate through its full range of motion across an extended service life, without the connector becoming a point of failure. For municipal security operators and system integrators, this translates into fewer maintenance interventions, more consistent surveillance coverage, and reduced risk of connectivity-related downtime in mission-critical monitoring networks.

Broader Industry Applications Beyond Security

While security monitoring is a primary use case, the industry adaptation for TXGA’s FPC/FFC Connector extends to smart building and smart home systems, as well as medical devices. In each of these settings, the same underlying requirement applies: components that move, flex, or operate in space-constrained enclosures need a connector that will not fatigue under repeated mechanical stress. The versatility of the 0.225 mm reinforcing plate design allows it to serve applications well beyond fixed-position electronics, giving system designers a dependable option wherever dynamic bending is a design constraint.

Backed by Rigorous Quality Standards and R&D Investment

The reliability of TXGA’s connector solutions is supported by a broader corporate commitment to engineering rigor. TXGA LLC, founded in 2005 and headquartered in Shenzhen, China, has built its reputation as an innovative industrial R&D and manufacturing enterprise with global business coverage. The company has obtained ISO9001, IATF16949, ISO13485, and ISO14000 certifications, along with TUV, UL, RoHS, and REACH safety certifications—an indication that its manufacturing processes are evaluated against recognized quality, automotive, medical device, and environmental standards.

TXGA has also been recognized as a National High-Tech Enterprise and holds 71 patent certifications, reflecting sustained investment in proprietary technology. Annual R&D funds exceed 10% of annual sales, and automated production coverage above 80% supports consistent manufacturing quality at scale. These credentials matter for buyers evaluating connector reliability, because certification and patent activity provide independent, verifiable markers of engineering discipline rather than unverified marketing claims.

Choosing TXGA Connector for Long-Term Reliability

For procurement managers, electrical engineers, and system architects specifying connectors for security equipment, the core decision criteria typically include mechanical durability, electrical stability, and long-term cost of ownership. TXGA’s FPC/FFC Connector addresses each of these through its reinforcing plate structure and demonstrated bend-cycle performance, while the company’s broader infrastructure—including a self-developed IFDMS digital management system and an F2C official website at txga.com offering real-time price, inventory, and delivery-time visibility—supports a streamlined procurement experience.

With more than 10,000 customers served globally and a service model built around technology-oriented customization, TXGA LLC positions its FFC connector line as a practical response to a well-documented engineering problem: keeping moving security equipment connected reliably over hundreds of thousands of operating cycles. As urban surveillance networks continue to expand and rely on cameras with active panning and tilting mechanisms, the underlying connector technology remains a foundational, if often overlooked, factor in overall system dependability. TXGA’s approach—grounded in a specific reinforcing plate structure and quantified bend-cycle testing—offers a documented, standards-backed pathway for engineers seeking to reduce mechanical failure points in dynamic security applications.
